The new KDE Direct 2315XF-885 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market:
0 Item Items
This product is no longer in stock
Warning: Last items in stock!
(1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

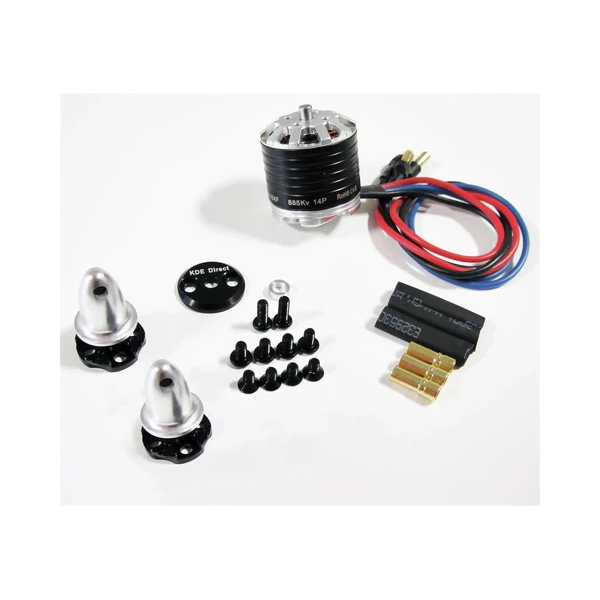

Motor includes 200°C, 18 AWG, 255mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (KDEXF-BC35, pre-soldered to the motor leads and ESC matching Bullet Connectors). Motors are rotational-direction matched and color-coded (black/red/blue) for simple installation into a wide-variety of airframes. Silicone-wire leads can be easily modified to length and soldered as needed (direct to ESC and/or bullet connectors).
Material: Neodymium N45UH
Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and sUAS applications: M3 x ф19mm, M2.5 x ф16mm, M3 x ф16/19mm (DJI Series).
|Kv (Motor Velocity Constant)||885 RPM/V|
|Kt (Motor Torque Constant)||0.0108 Nm/A|
|Km (Motor Constant)||0.0303 Nm/√(W)|
|Maximum Continuous Current*||24 A (180 s)|
|Maximum Continuous Power*||355 W (180 s)|
|Voltage Range||11.1 V (3S LiPo) - 26.1 V (6S LiHV)|
|Io (@10V)||0.5 A|
|Rm (Wind Resistance)||0.127 Ω|
|Stator Poles||12 (12S14P)|
|Magnetic Poles||14 (12S14P)|
|Bearings||Triple, MR84ZZ, MR104ZZ|
|Mount Pattern||M3 x ф19 mm, M2.5 x ф16 mm, M3 x ф16/19 mm|
|Stator Class||2315, 0.2 mm Japanese|
|Shaft Diameter||ф4 mm (ф4 mm Internal)|
|Shaft Length||3.5 mm|
|Motor Diameter||ф28.3 mm|
|Motor Rotor Inertia||0.041 kg*cm^2|
|Motor Length||28.5 mm|
|Motor Weight||64 g (75 g with Wires/Bullets)|
|Propeller Size||Up to 12" (9" Maximum on 6S)|
|Motor Advance Timing||22° - 30°|
|Motor Drive Frequency||16 - 32 kHz|
*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.
