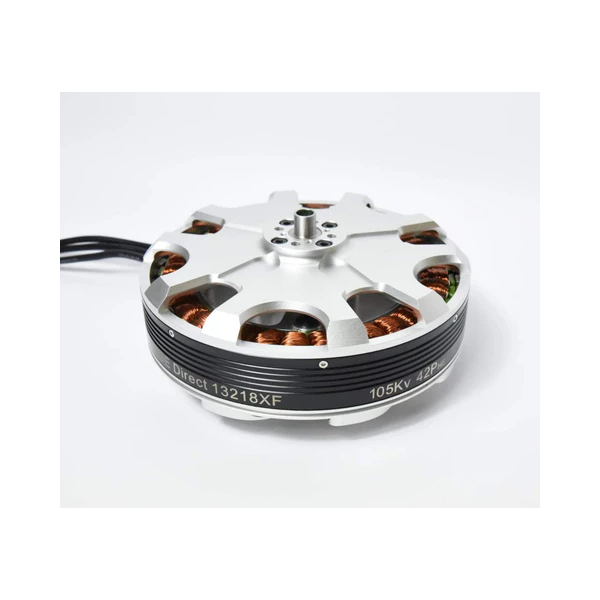

The new KDE Direct 13218XF-120 (HE) Multi-Rotor Brushless Motor is an aerospace-level flagship of technology from KDE Direct - designed specifically for heavy-lift commercial and industrial applications.
0 Item Items
This product is no longer in stock
Warning: Last items in stock!
Availability date:
With an all-new bearing design (triple-supported, ABEC-7 angular-contact and radial bearings) specific for high-thrust capacity and market-leading durability, the motors encompass the premier of UAS technology.The motor incorporates a very high-efficiency (HE) 42-pole design, used in our industrial applications, and now brought to the UAS market for long-duration flight performance. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) integrated centrifugal-fan for cool running temperatures and high-performance capacity. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications
Material: Neodymium N45UH
Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and UAS applications: M5 x ф55mm, M5 x ф70mm, M6 x ф70mm.
Finish:
Full Specifications:
Kv (Motor Velocity Constant) | 105 RPM/V |
Kt (Motor Torque Constant) | 0.0909 Nm/A |
Km (Motor Constant) | 1.0875 Nm/√(W) |
Maximum Continuous Current* | 150 A |
Maximum Continuous Power* | 9135 W (180 s) (60.9 V) |
Voltage Range | 22.2 V (6S LiPo) - 60.9 V (14S LiHV) |
Io (@10V) | 3.1 A |
Rm (Wind Resistance) | 0.013 Ω |
Stator Poles | 36 (36S42P, HE) |
Magnetic Poles | 42 (36S42P, HE) |
Bearings | Triple, 6902-2RS/7902C/7202C |
Mount Pattern | M5 x ф55 mm, M6/M5 x ф70 mm |
Stator Class | 13218, 0.2 mm Japanese |
Shaft Diameter | ф10 mm (ф15 mm Internal) |
Shaft Length | 9.5 mm |
Motor Diameter | ф150.2 mm |
Motor Rotor Inertia | 21.865 kg*cm^2 |
Motor Length | 55.2 mm |
Motor Weight | 2015 g (2120 g with Wires/Bullets) |
Propeller Blade Size | Up to 35.5" DP |
Motor Advance Timing | 22° - 30° |
Motor Drive Frequency | 16 - 32 kHz |
Voltage | Propeller | Compatible ESCs |
6S | 35.5" x 12.1 DUAL-EDN (KDE) | 85A |
95A | ||
125A | ||
8S | 35.5" x 12.1 DUAL-EDN (KDE) | 85A |
125A | ||
95A | ||
10S | 35.5" x 12.1 DUAL-EDN (KDE) | 85A |
95A | ||
125A | ||
12S | 35.5" x 12.1 DUAL-EDN (KDE) | 95A |
125A | ||
14S | 35.5" x 12.1 DUAL-EDN (KDE) | 125A |
*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor
